FERCHER FB-6/S-1-1 wastewater heatexchanger in a water-treatment plant

Photos: FERCHER FB-6/S-1-1 wastewater heatexchanger in a water-treatment plant

FERCHER FB-6/S-1-1 wastewater heatexchanger in a water-treatment plant
FERCHER FB-6/S-1-1 wastewater heatexchanger in a water-treatment plant

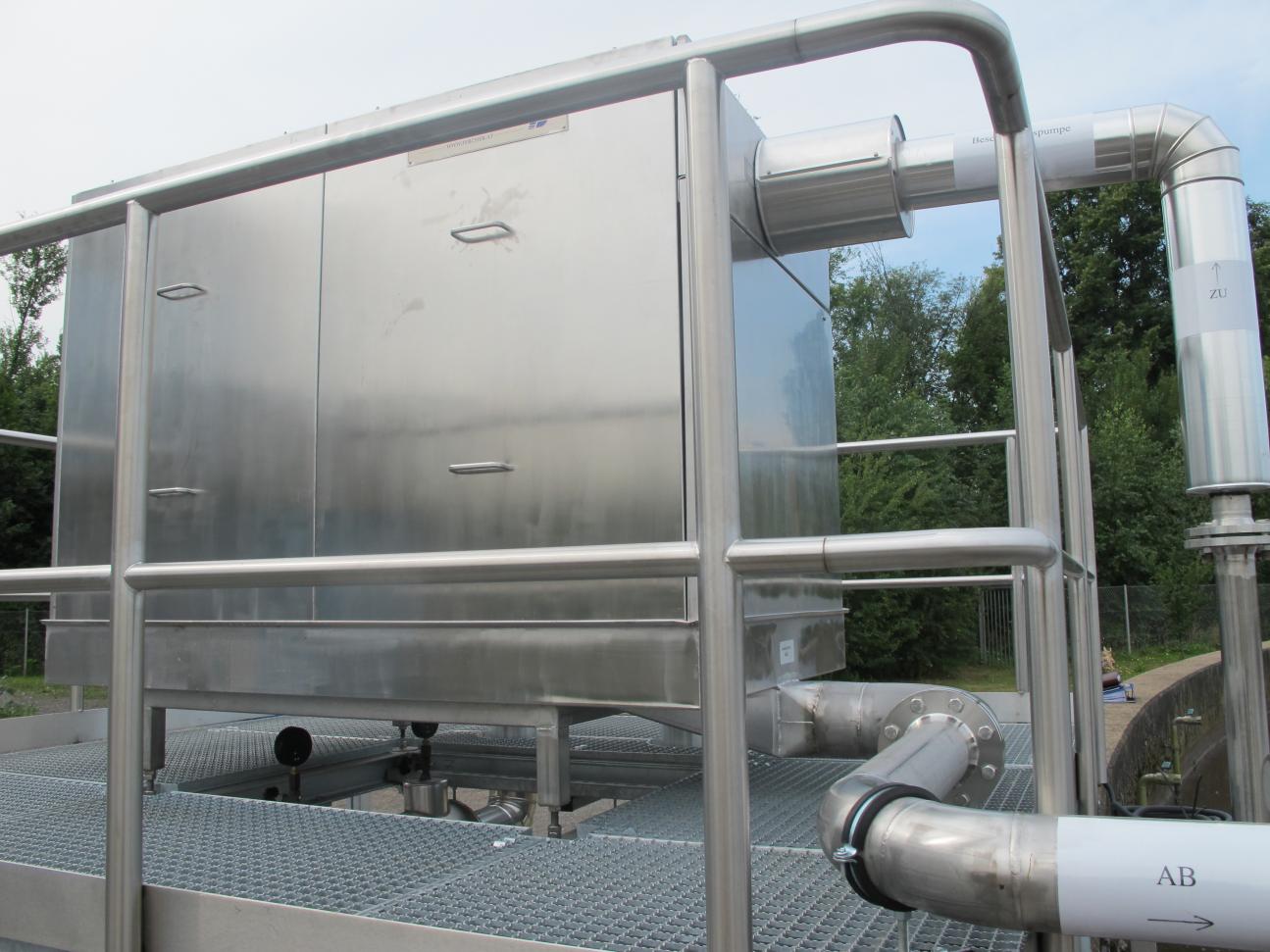

Side-view of the heatexchanger with connections (left = wastewater inlet and outlet, bottom = freshwater inlet and outlet)
Side-view of the heatexchanger with connections (left = wastewater inlet and outlet, bottom = freshwater inlet and outlet)
FERCHER FB-6/S-1-1 wastewater heatexchanger in a water-treatment plant
FERCHER FB-6/S-1-1 wastewater heatexchanger in a water-treatment plant
One side view removed, absorber-plates visible
One side view removed, absorber-plates visible

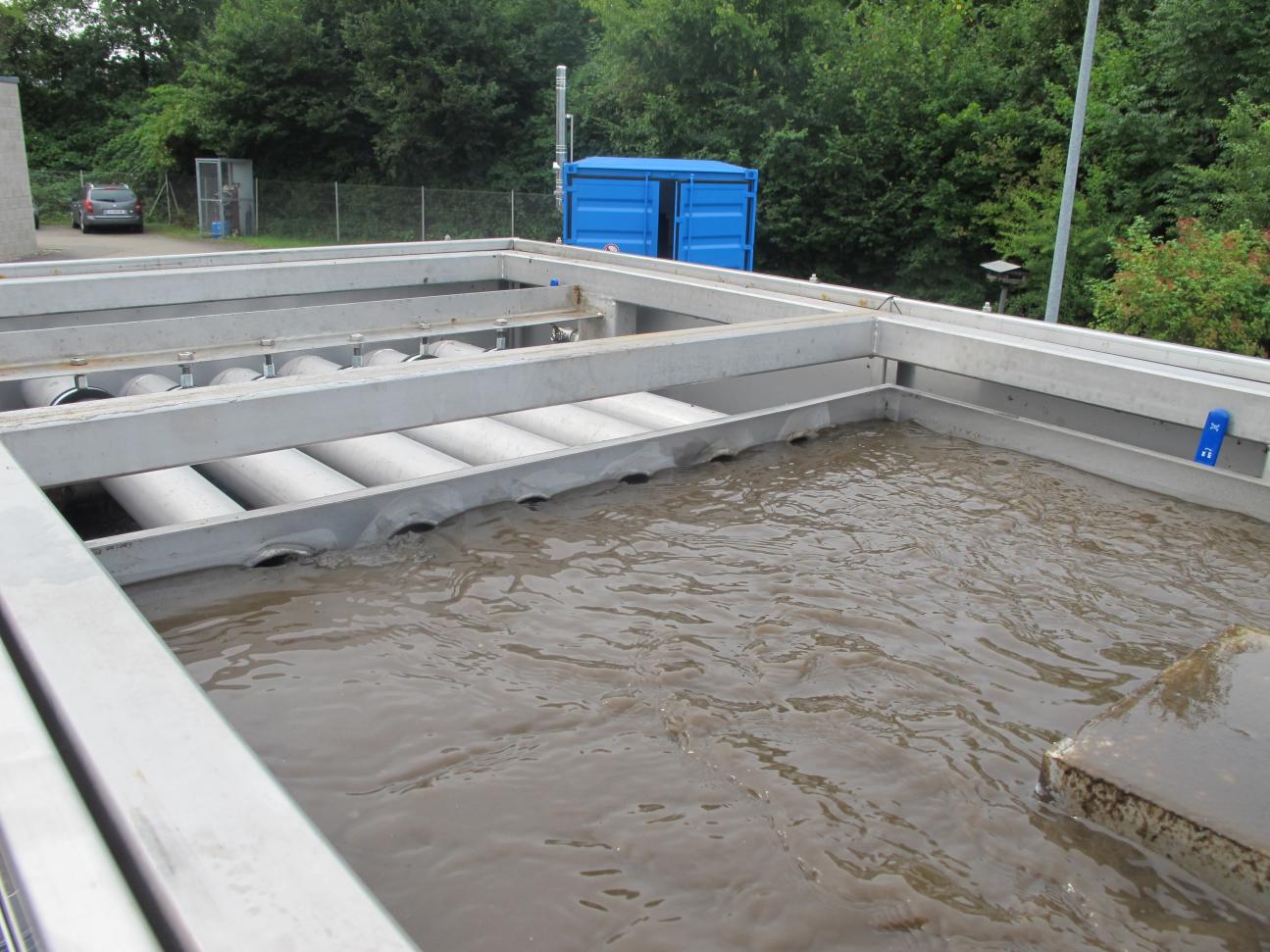

Wastewater distribution tank on the top inside the heatexchanger, heatexchanger is operated with high wastewater flow, no problem for heatexchanger
Wastewater distribution tank on the top inside the heatexchanger, heatexchanger is operated with high wastewater flow, no problem for heatexchanger

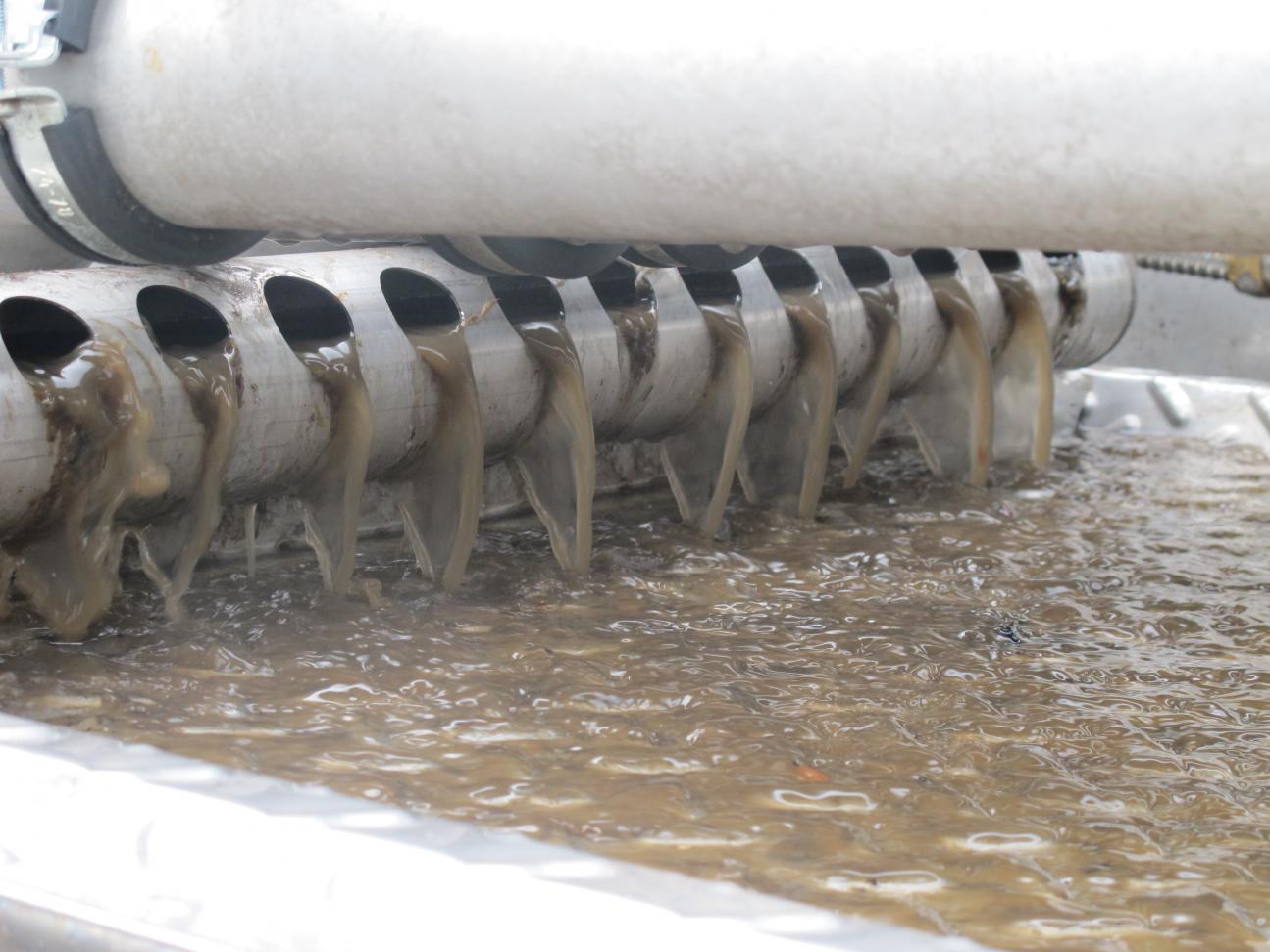

Distribution of the wastewater on the absorber-plates
Distribution of the wastewater on the absorber-plates
